Specification Details
A selection of mechanical drawings are provided below to provide a visual reference for installing RoofKit, specifically as it relates to edges, terminations, corners and vertical walls. Always consult the Pocket Application Guide for RoofKit EPDM or White Reinforced during installation, or contact technical support at
1-800-225-4714 Ext. 7889.
ROOFKIT EPDM
Click image to enlarge

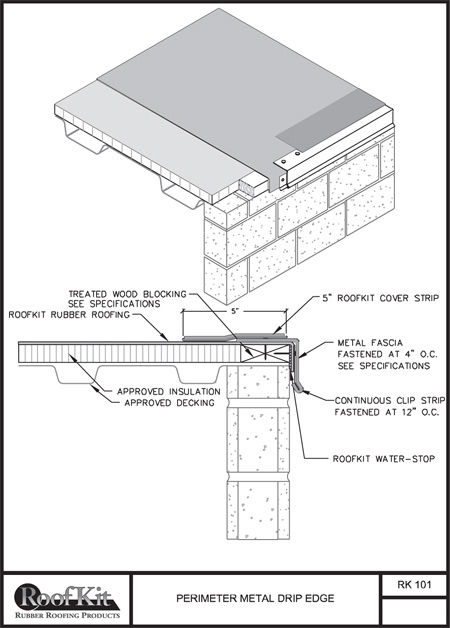

Perimeter Metal Drip Edge
Click image to enlarge

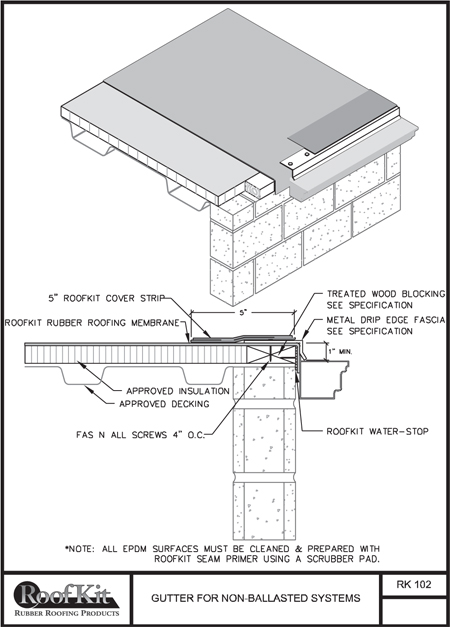

Gutter for Non-Ballasted Systems
Click image to enlarge

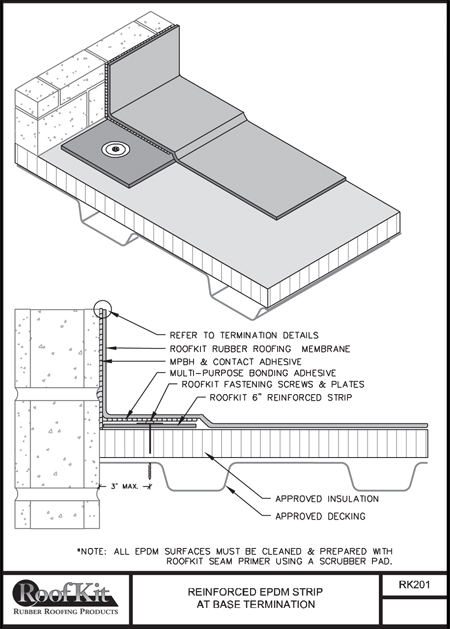

Reinforced EPDM Strip at Base Termination
Click image to enlarge

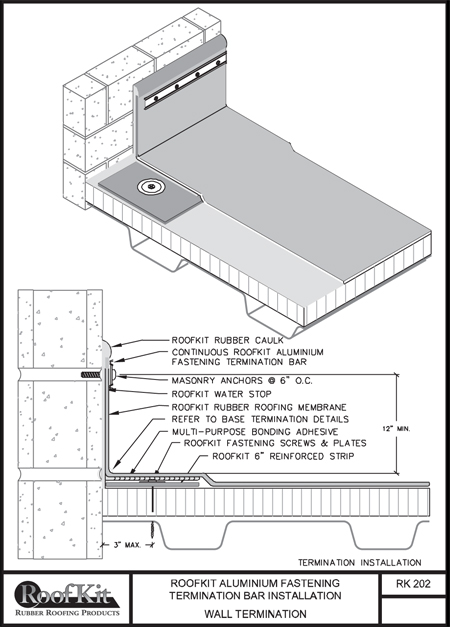

Termination Bar Installation Wall Termination
Click image to enlarge

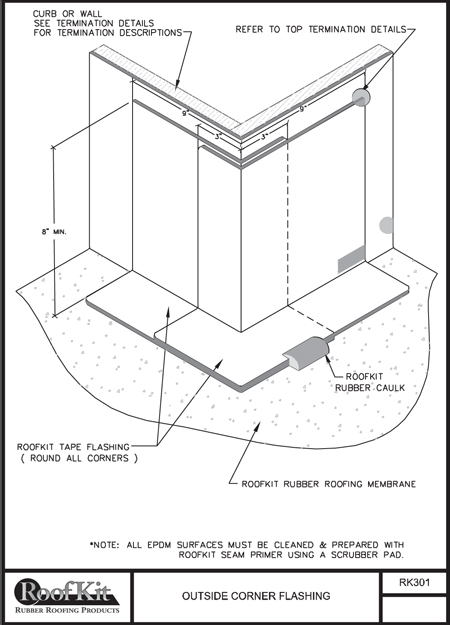

Outside Corner Flashing
Click image to enlarge

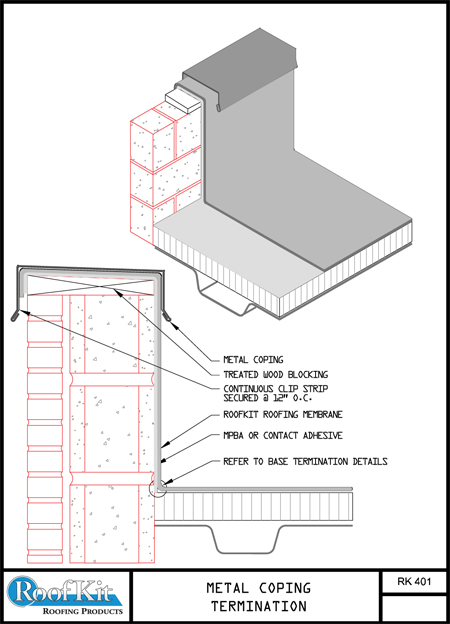

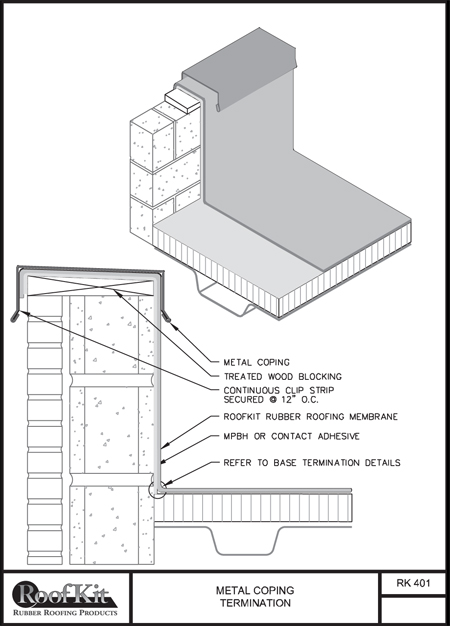

Metal Coping Termination
ROOFKIT WHITE REINFORCED
Click image to enlarge

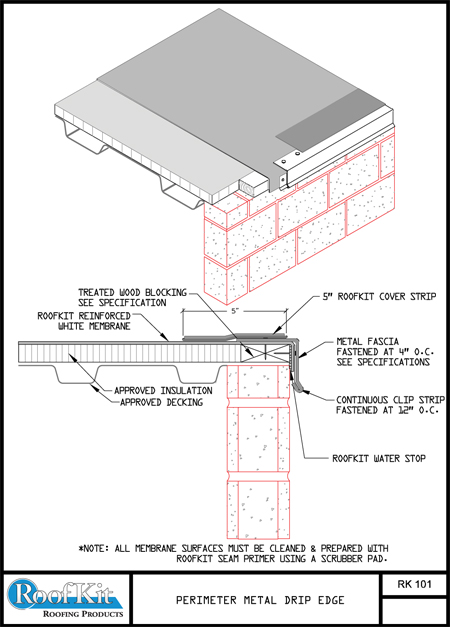

Perimeter Metal Drip Edge
Click image to enlarge

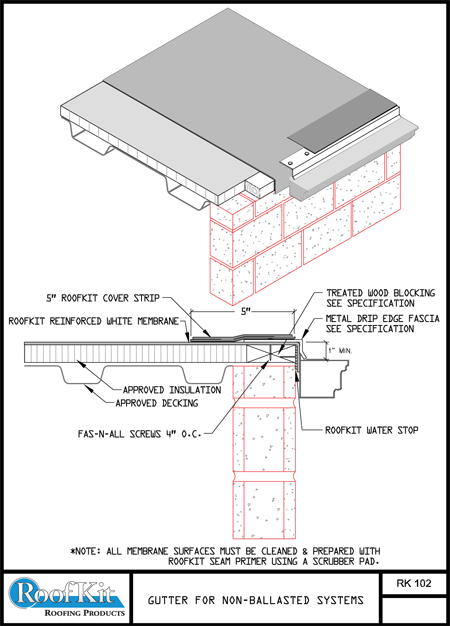

Gutter for Non-Ballasted Systems
Click image to enlarge

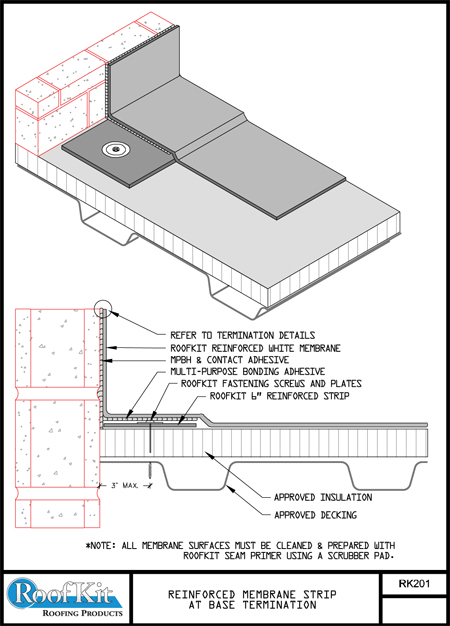

Reinforced Membrane Strip at Base Termination
Click image to enlarge

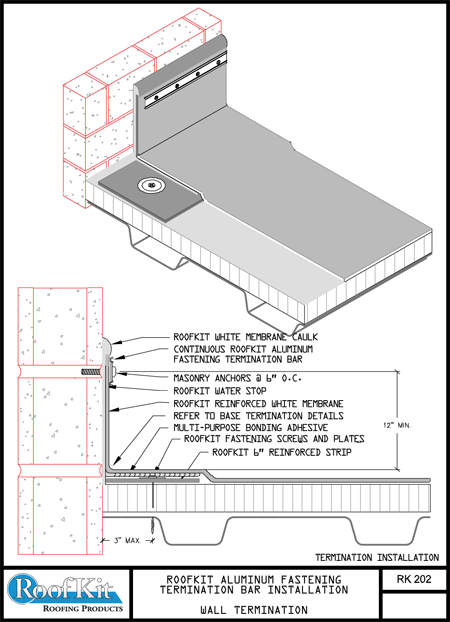

Termination Bar Installation Wall Termination
Click image to enlarge

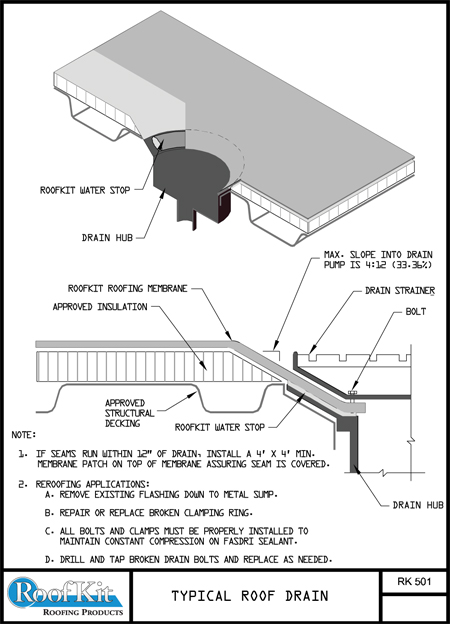

Typical Roof Drain
Click image to enlarge
